USE
A set capable of easily regenerating dead knots and missing knots
FEATURES
- Shave with a taper bit. After that drive wooden plug to regenerate the knot.
- You can make a wooden plug from twig or round wooden pole.
Specifications
| Usage | Wood |
|---|---|
| Material(s) | Plug CutterAluminumPlug Cutter ShankHigh Carbon SteelReplaceable BladeH.S.S.Taper DrillSpecial SteelGauge RingAluminum |
| Recommended tool(s) | Electric Power Drill |
| RPm | Less than 1,500 rpm |
| Shank Shape | Three Flat |
Sizes
Unitmm
| Product No. | Name | Shank Shape |
|---|---|---|
| 4950 | Set | 10 |

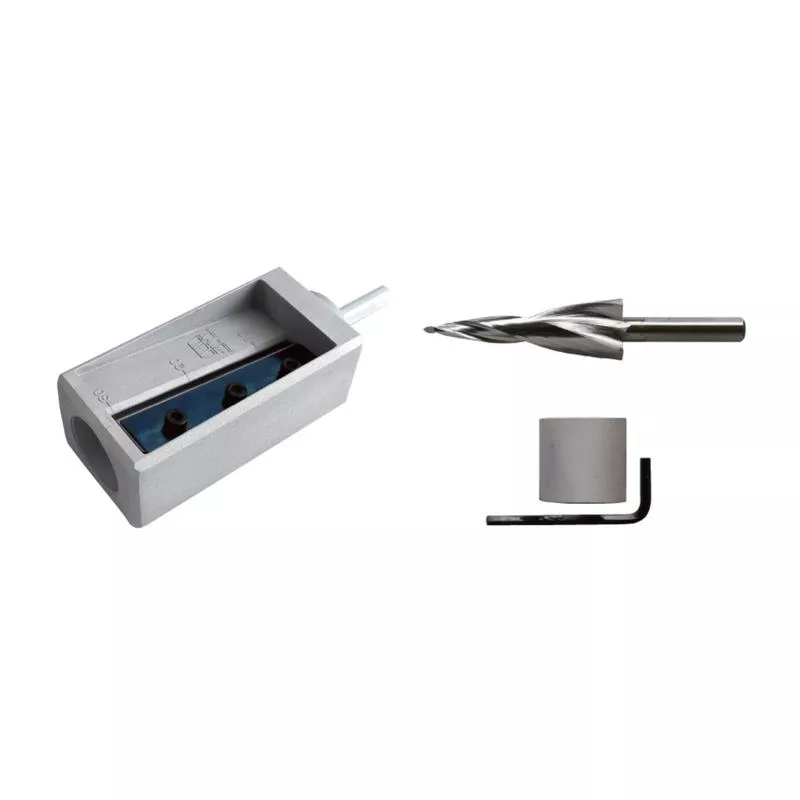

Set contentsTaper Drill(4950-A)Plug Cutter(4950-B)Gauge Ring(4950-G)Hex Wrench(4950-OP1)
Assembly
Taper Drill
Size1D1Size2D2Overall LengthLSpiral LengthSLShank ShapedUnitmm
| Product No. | Size1 | Size2 | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|---|
| 4950-A | 5 | 25 | 126 | 76 | 10 |
Taper Drill (for thin board) is preferred for around 10mm board.
Plug Cutter
Size11Size22Shank ShapedUnitmm
| Product No. | Size1 | Size2 | Shank Shape |
|---|---|---|---|
| 4950-B | 5 | 30 | 10 |
Replaceable Blade, Plug Cutter Shank.
Replaceable Blade
| Product No. |
|---|
| 4950-K |
The Set screws are not included, and are sold separately.
Plug Cutter Shank
Shank ShapedUnitmm
| Product No. | Shank Shape |
|---|---|
| 4950-J | 10 |
Gauge Ring
DInner Size Unitmm
| Product No. | Inner Size |
|---|---|
| 4950-G | 30 |
Other Assembly
Unitmm
| Product No. | Name | Size |
|---|---|---|
| 4950-OP1 | Hex Wrench | 4 |
| 4950-OP2 | Set screw for fixing Replaceable Blade | 5X12 |
Bits of knowledge
- Gauge Ring helps you to decide wood size.
Help
How to use
Shave with a taper drill along the diameter of knot.
Shape with a wood plug under a branch a little thicker than the hole of the knot.
Drive a wooden plug coated with a bond agent into the hole made in the knot with taper drill.Cut off the projecting part of the wooden plug, finish the cut off part by sanding and it will turn into a beautifull live knot instantly.
